Hazardous Locations

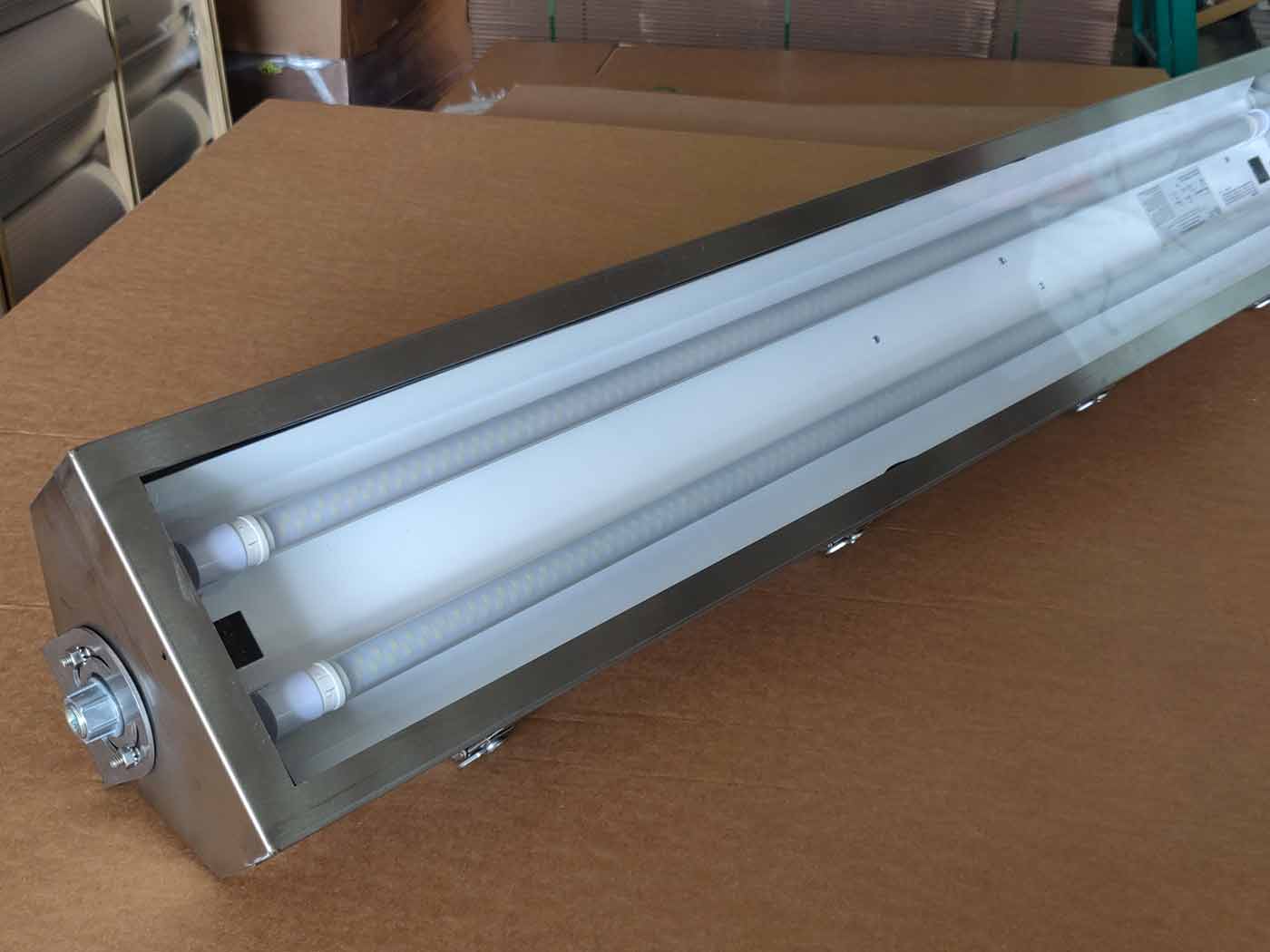

IR2 Series
Available in 265mA, 430mA, 460mA, LED and universal voltages. UL 844 Class 1 Div 2 Groups A B C D.
CLASS 1 DIVISION 2 GROUPS A B C D
UL 844 Hazardous Locations
Request a Quote
Or call us: 1-800-373-6314
Applications
- Petrochemical Facilities
- Lubrication Pits
- Oil Drilling Rigs
- Crew Quarters
- Solvent/Cleaning Areas
- Processing Plants
- Water Treatment Areas
- Marine Loading Docks
Specifications
- Construction
- Corrosion resistant non-metallic glass reinforced polyester housing
- Hardware
- Captive plastic or stainless steel latches
- Lens
- Heavy duty injection molded lens
- Light Source
- 17W 35W 40W 54W 60W LED -- LED ARRAY 40W each 4400 nominal lumens per strip
- Power
- 120-277v 50/60Hz UNV
- Ambient Temp
- 55C maximum
- Mounting
- Stainless steel mounting brackets
- Weight
- 2 foot 10 lbs, 4 foot 20 lbs
Key Features
- Field replaceable LED circuit boards and drivers with quick disconnects
- Heavy duty ballast tray
5 year warranty on LED
