Hazardous Locations

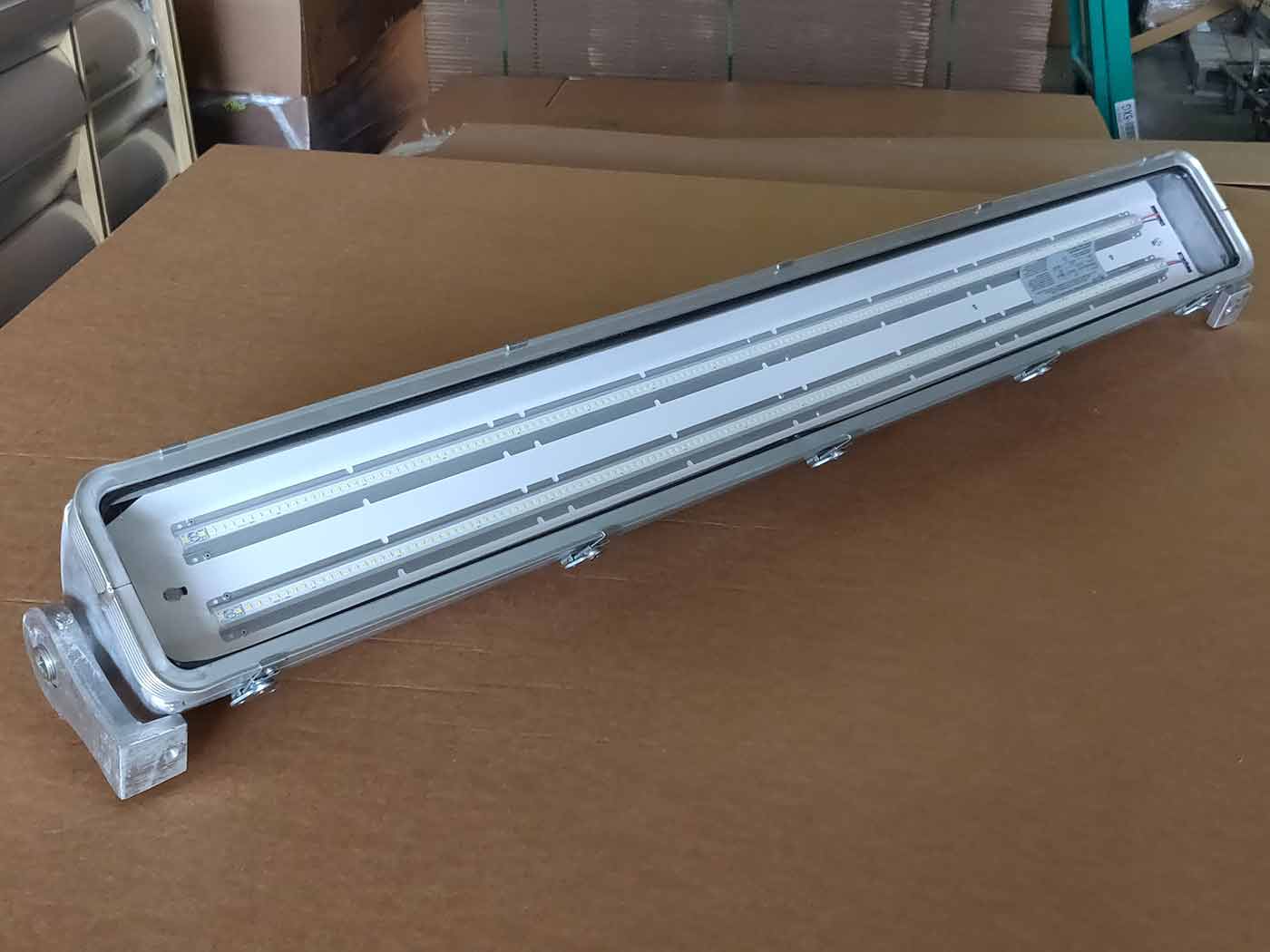

IR3 Series
UL 844 Class 1 Div 2 Groups A B C D. UL 1598A Outdoor Marine Type (Saltwater). Meets Coast Guard Specifications. Enclosed and gasketed.
CLASS 1 DIVISION 2 GROUPS A B C D
UL 844 Hazardous Locations
UL 924 Emergency Lighting
UL 1598A Marine Outside Type
Request a Quote
Or call us: 1-800-373-6314
Applications
- Petrochemical Facilities
- Lubrication Pits
- Oil Drilling Rigs
- Crew Quarters
- Solvent/Cleaning Areas
- Processing Plants
- Water Treatment Areas
- Marine Loading Docks
Specifications
- Construction
- Corrosion resistant marine grade copper free extruded aluminum
- Hardware
- Zinc plated latches
- Lens
- Acrylic and tempered glass
- Light Source
- 17W 35W 40W 54W 60W LED -- 4000 and 8000 lumens
- Power
- 120-277v 50/60Hz UNV
- Ambient Temp
- 40C maximum
- Mounting
- Versatile mounting -- standard end mounting and angle mounting
- Weight
- 2 foot 28 lbs, 4 foot 30 lbs
1 year
