Flagship Product
Hazardous Locations

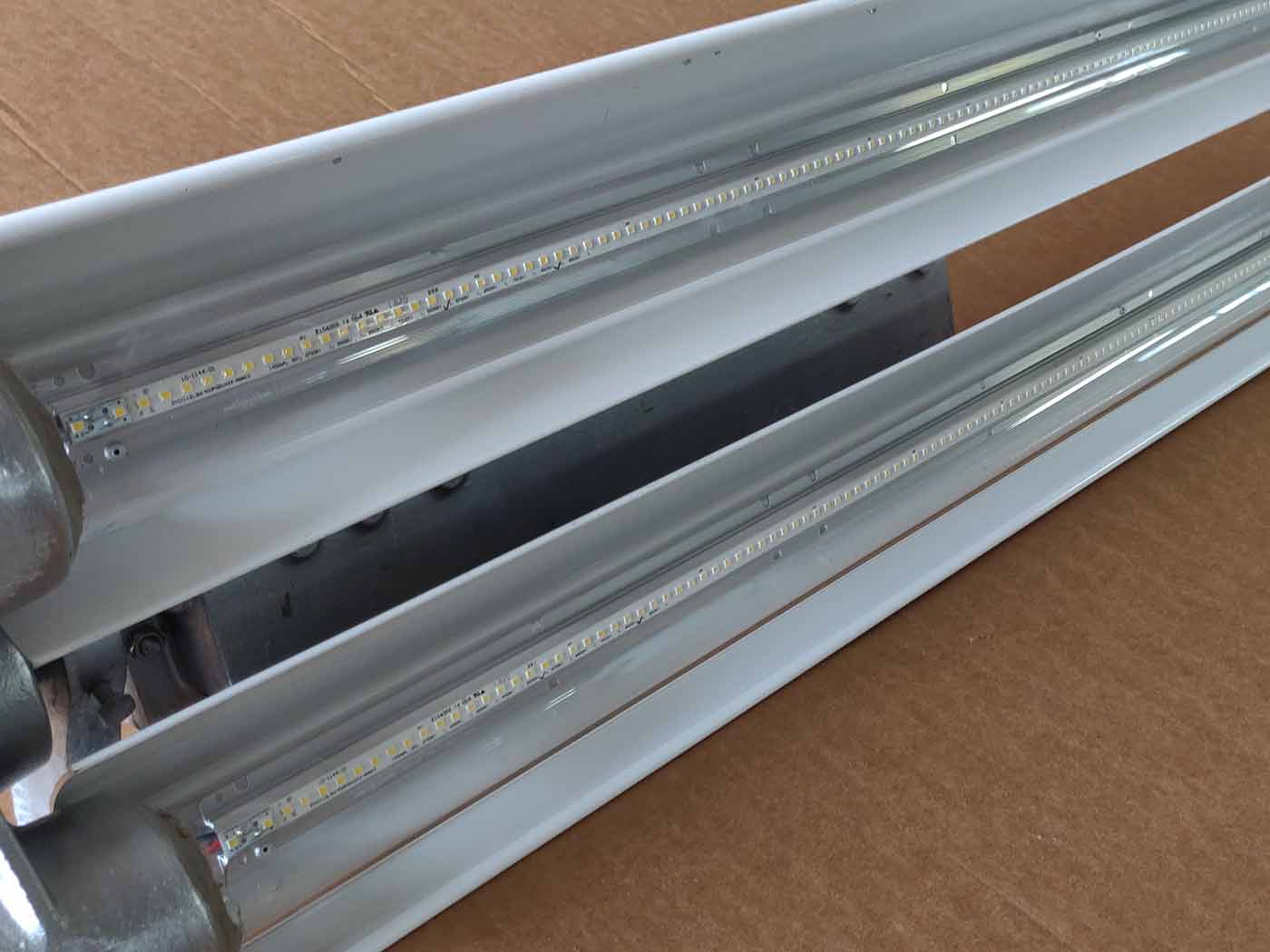

IR4 Series
Explosion-proof high-output LED with corrosion-resistant cast housing engineered for prolonged exposure to harsh atmospheres. Explosion-proof is the hardest certification to obtain -- the IR4 carries it. Paint spray booth approved.
CLASS 1 DIVISION 1 GROUPS C D
CLASS 2 DIVISION 1 AND 2 GROUPS E F G
UL 844 Hazardous Locations
UL 924 Emergency Lighting
UL 1598A Marine Outside Type
ABS
NEMA 4X
IP66
Request a Quote
Or call us: 1-800-373-6314
Applications
- Petrochemical Facilities
- Lubrication Pits
- Oil Drilling Rigs
- Crew Quarters
- Solvent/Cleaning Areas
- Processing Plants
- Water Treatment Areas
- Marine Loading Docks
Specifications
- Construction
- Corrosion resistant marine grade copper free aluminum heavy gauge extruded reflectors with high gloss reflective finish
- Hardware
- Stainless steel bolts
- Lens
- Explosion-proof impact and heat resistant glass tubes
- Light Source
- 17W 35W 40W 54W 60W LED -- LED ARRAY 40W each 4000 nominal lumens on 4 foot strip
- Power
- 120-277v 50/60Hz UNV
- Ambient Temp
- 40C maximum
- Mounting
- Versatile -- standard end mounting and pendant mounting
Dimensions
| Configuration | Length | Width | Height | Weight |
|---|---|---|---|---|
| 2ft 2-tube | 27.5" | 11.25" | 8.5" | 55 lbs |
| 4ft 2-tube | 52" | 11.25" | 8.5" | 65 lbs |
| 4ft 4-tube | 52.5" | 24" | 9.5" | 120 lbs |
Key Features
- Field replaceable LED circuit boards and drivers with quick disconnects
- Convenient wiring access through screw-cap covers
- Factory sealed
5 year warranty on LED
