Hazardous Locations

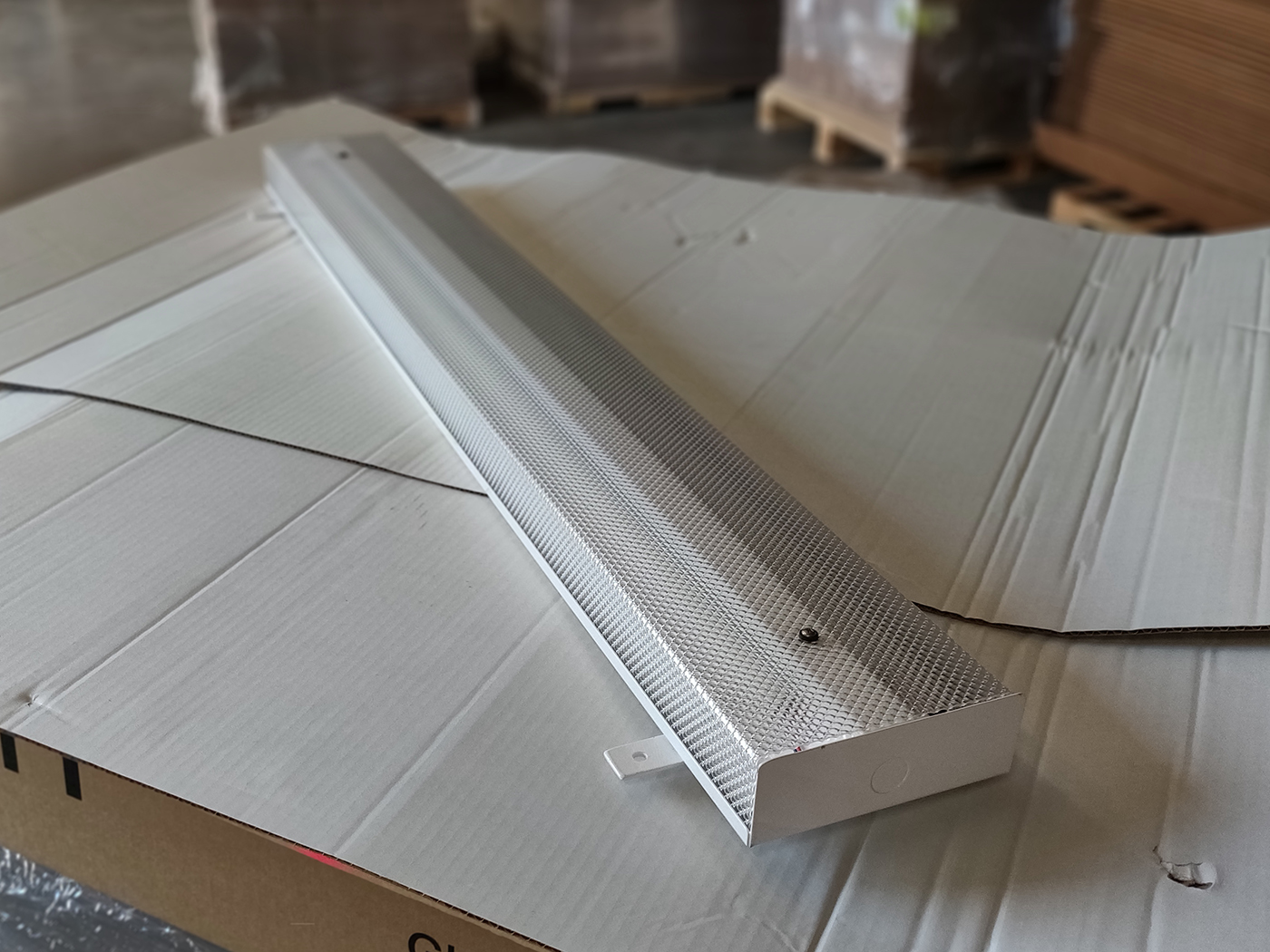

IR6 Series
Inside drip proof. UL 1598A. Low profile one-piece housing for surface mount narrow passageway and workstation applications.
UL 1598A Marine Outside Type
Request a Quote
Or call us: 1-800-373-6314
Applications
- Surface Mount
- Narrow Housing Passageway
- Work Station
Specifications
- Construction
- Corrosion resistant marine grade copper free aluminum heavy gauge extruded reflectors with high gloss reflective finish
- Hardware
- Stainless steel bolts
- Lens
- Powder coated prismatic one-piece 5/32 lens
- Light Source
- 17W (2ft), 32W (4ft), 20W LED (2ft), 40W LED (4ft)
- Power
- 120-277v 50/60Hz UNV
- Ambient Temp
- 40C maximum
- Mounting
- Surface mount
- Weight
- 2 foot 6 lbs, 4 foot 8.5 lbs
Key Features
- One piece low profile housing
- Two T8 lamps with locking sockets
- Standard universal ballast
- 2 and 4 foot models
5 year warranty on LED
